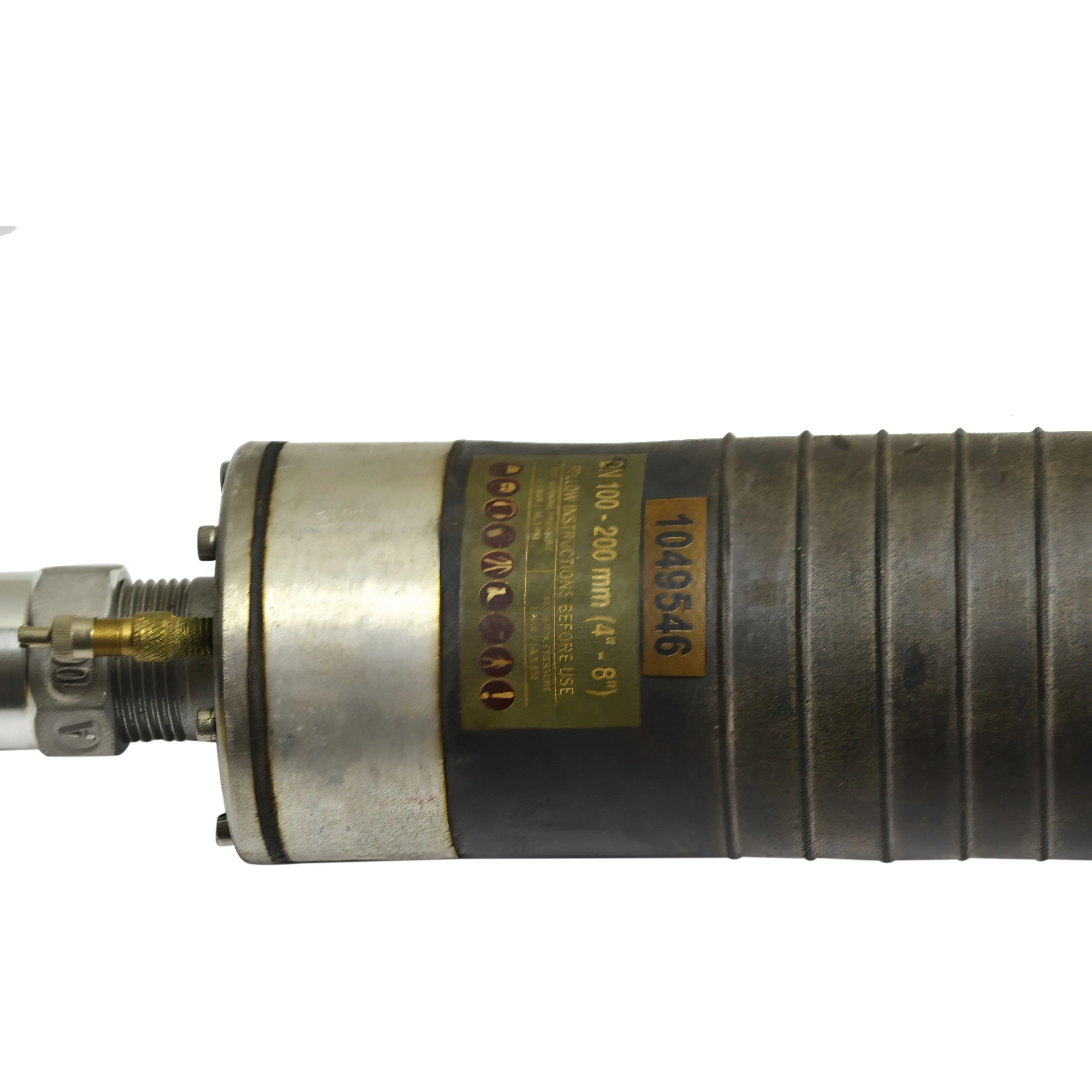

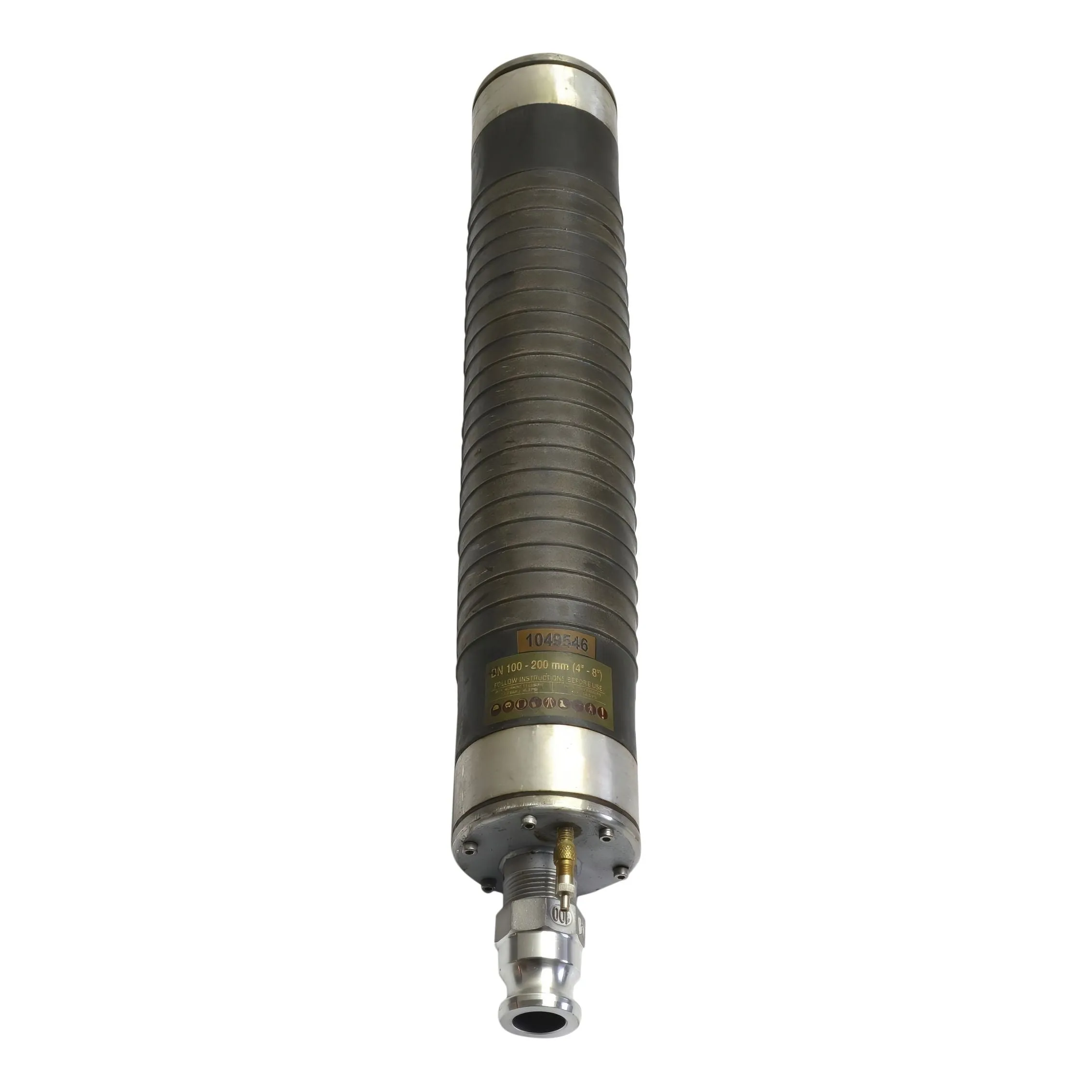

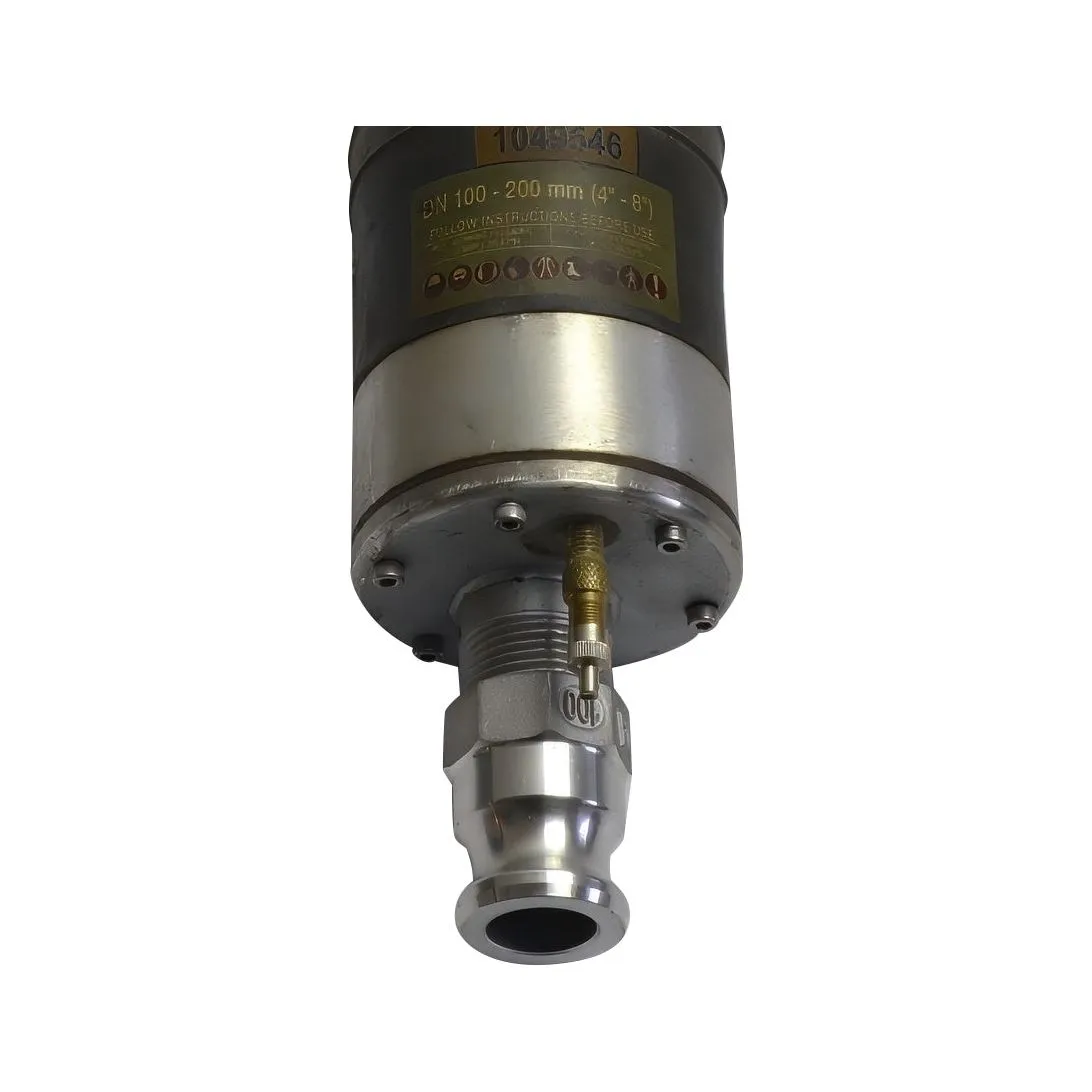

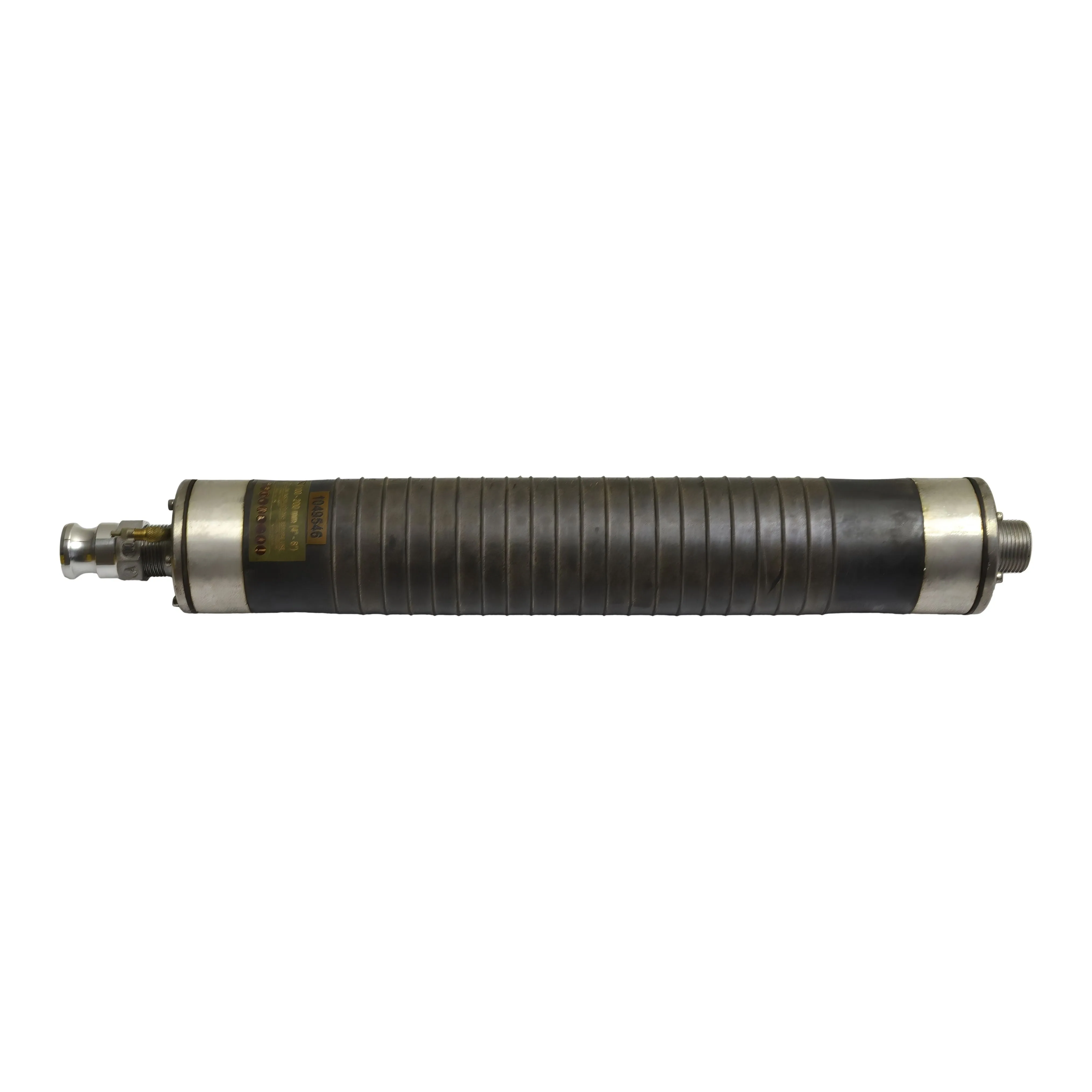

Introduction: The PLUGLINE Multi Size Metal Core Inflatable Bypass Plug are expertly designed for fast, reliable sealing and blocking of sewers, pipes, gullies, and drainage systems. Ideal for maintenance, repair, and leak inspection tasks, these stoppers are a dependable choice for hydrostatic testing and preventing unwanted ingress of water, gases, and debris. Constructed from high-quality, kevlar-reinforced NR/SBR rubber with customizable options, PLUGLINE Pipe Stoppers are engineered for durability and high performance across demanding environments.
Key Features:
- Efficient Sealing and Blocking: Designed for quick and secure sealing in pipes, sewers, gullies, and drainages, perfect for repair, maintenance, and leak inspection.
- Versatile Applications: Ideal for hydrostatic testing and preventing water, gas, and rodent ingress in new pipelines.
- High-Quality Construction: Made from NR/SBR rubber reinforced with kevlar tire cording for added durability and puncture resistance; customizable to NBR, CR, or EPDM upon request.
- Wide Size Range: Accommodates large size diameters from 100 mm to 200 mm.
- Pressure & Temperature Performance: Standard working pressures of 1.5 bar, with high-pressure variants up to 12.0 bar; operates effectively from -40 °C (-40 °F) to 70 °C (158 °F).
- Chemical Resistance: Offers high resistance to a variety of chemicals, ensuring reliability in harsh environments.
- Specifications:
- Product Code: 220 400 0100-200-50
- Maximum Pipe Inner Diameter: 100mm (3.94”)
- Minimum Pipe Inner Diameter: 200mm (7.87”)
- Product Diameter: 92mm/3.62"
- Bypass: 50.80mm/2"
- Total Length: 400mm/15.75"
- Weight: 4.5kg
- Inflation Bar: 1.5
- A helpful addition would be a extension hose allowing safe inflation. Lengths supplied as 1, 3 or 6 meter lengths. Custom lengths can be requested.
- Item code for 1 meter 119 118 S 01
- Item code for 3 meter 119 118 S 03
- Item code for 6 meter 119 118 S 06
The PLUGLINE Inflatable Pipe Stoppers provide a powerful and versatile solution for pipeline sealing, trusted by professionals for their high strength, adaptability, and chemical resistance.
